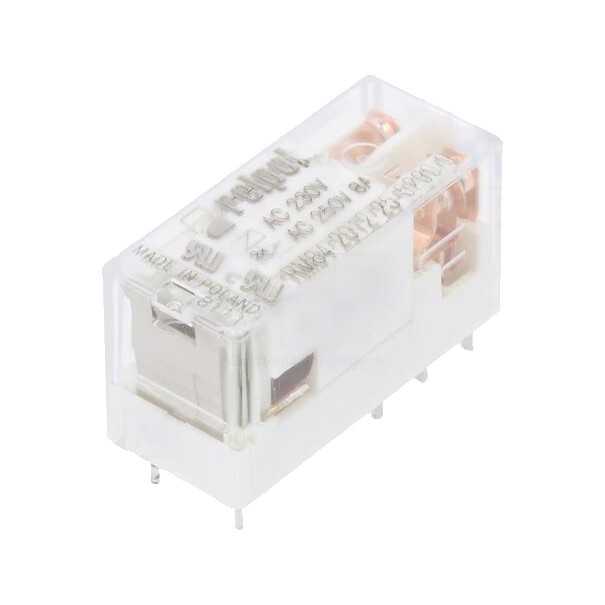

Relay electromagnetic 230vac

Type of relay: electromagnetic

Contacts configuration: DPDT

Rated coil voltage: 230V AC

AC contacts rating @R: 8A / 250V AC

DC contacts rating @R: 8A / 24V DC

Contact current max.: 8A

Switched voltage: max. 250V DC, max. 440V AC

Relay variant: miniature

Mounting: PCB

Coil resistance: 38.5kΩ

Coil voltage min.: 184V AC

Coil voltage max.: 276V AC

Operate time: 7ms

Body dimensions: 29x12.7x15.7mm

Release time: 3ms

Coil power consumption: 750mVA

IP rating: IP67

Mechanical durability: 30000000 cycles

Operating temperature: -40...85°C

Weight: 14g

Relay series: RM84

Contact resistance: 100mΩ

Contact material: AgNi

Terminal pitch: 5mm

Height: 15.7mm

Related items: GD50, GZ80, GZM80, GZM80-BK, GZT80, PW80

OEM number: 859519

Number of pins: 8

Body colour: transparent

Manufacturer: RELPOL
